PVC Hot-cut pelletizing line
PVC Hot-cut pelletizing line
This machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.
380V 50Hz
20-110kw
150-800kg/h
PVC Powder
Coal Ash
12 months warranty
ISO/CE Certificate
Engineer avalable service overseas
Product Description

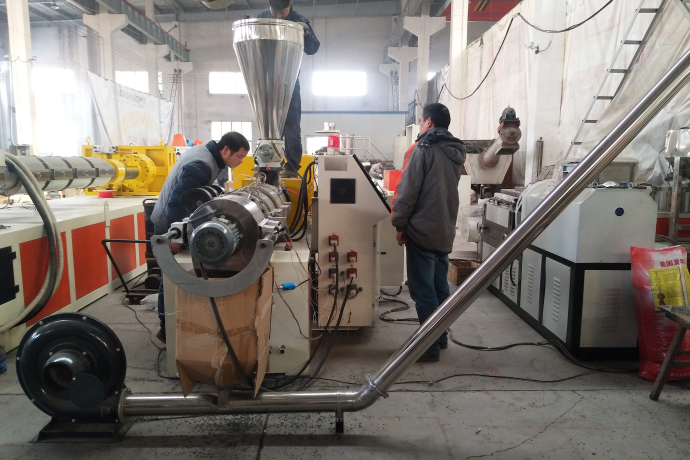

1.Application of plastic pvc pellets making production machine line
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production.
It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel
storage container and can run at high speed for a long time while extrude stably.
2.Features of plastic pvc pellets making production machine line
1,advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity

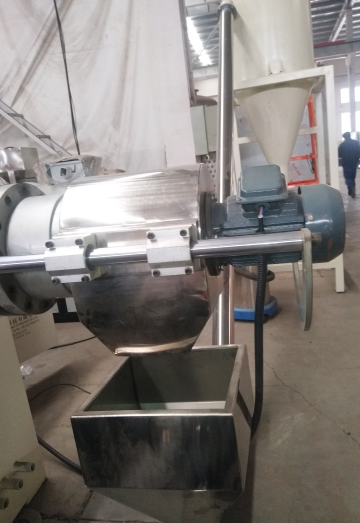

3, Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4,Auxiliary machine: Pellets cooling & classifying
3.Process flow of plastic pvc pellets making production machine line
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production.
It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel
storage container and can run at high speed for a long time while extrude stably.
2.Features of plastic pvc pellets making production machine line
1,advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity
3, Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4,Auxiliary machine: Pellets cooling & classifying
3.Process flow of plastic pvc pellets making production machine line
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing

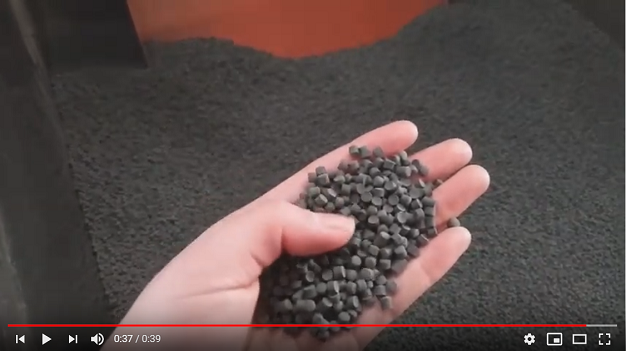

Working Video
Application
Technical Parameters
| Model | Extruder | Power(kw) | Capacity(kg/h) |
| FST-150 | SJSZ-55/110 | 22 | 100-150 |
| FST-250 | SJSZ-65/132 | 37 | 200-250 |
| FST-400 | SJSZ-80/156 | 55 | 350-400 |
| FST-800 | SJSZ-92/188 | 110 | 650-800 |
