PVC PP PE Single Wall Corrugated Pipe Extrusion Machine

Products > Plastic Pipe Extrusion LIne > PVC PP PE Single Wall Corrugated Pipe Extrusion Machine

PVC PP PE Single Wall Corrugated Pipe Extrusion Machine

PP PE PVC corrugated pipe machine is stable plasticizing performance and easy,safe operation.
380V 50HZ 50kw 1500m/h
PVC/PP/PE
ISO/CE 12 months Engineer service avaliable overseas

Detail Information




Production Introduction

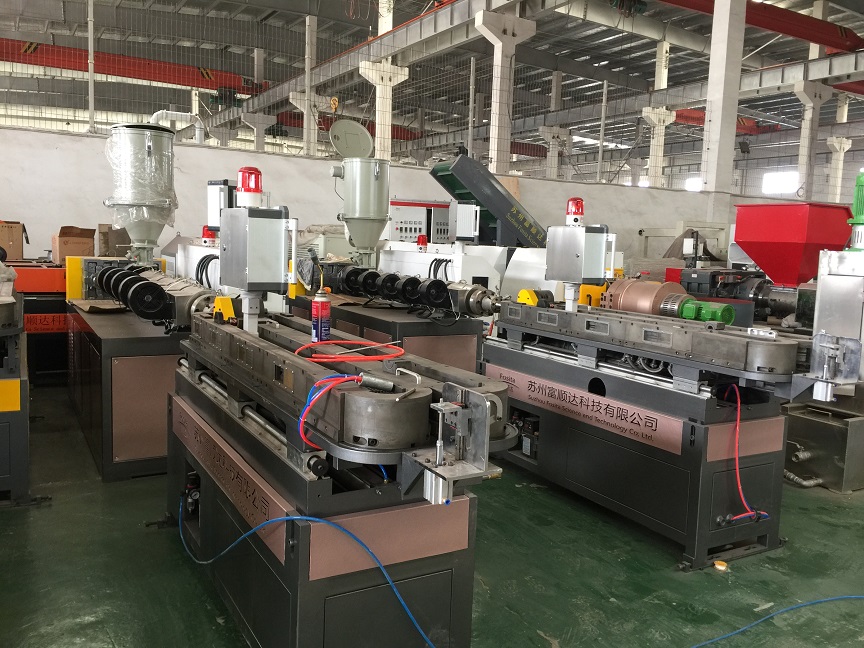

Single wall corrugated pipe production line(10-50mm):
Working Video Please Click: www.youtube.com

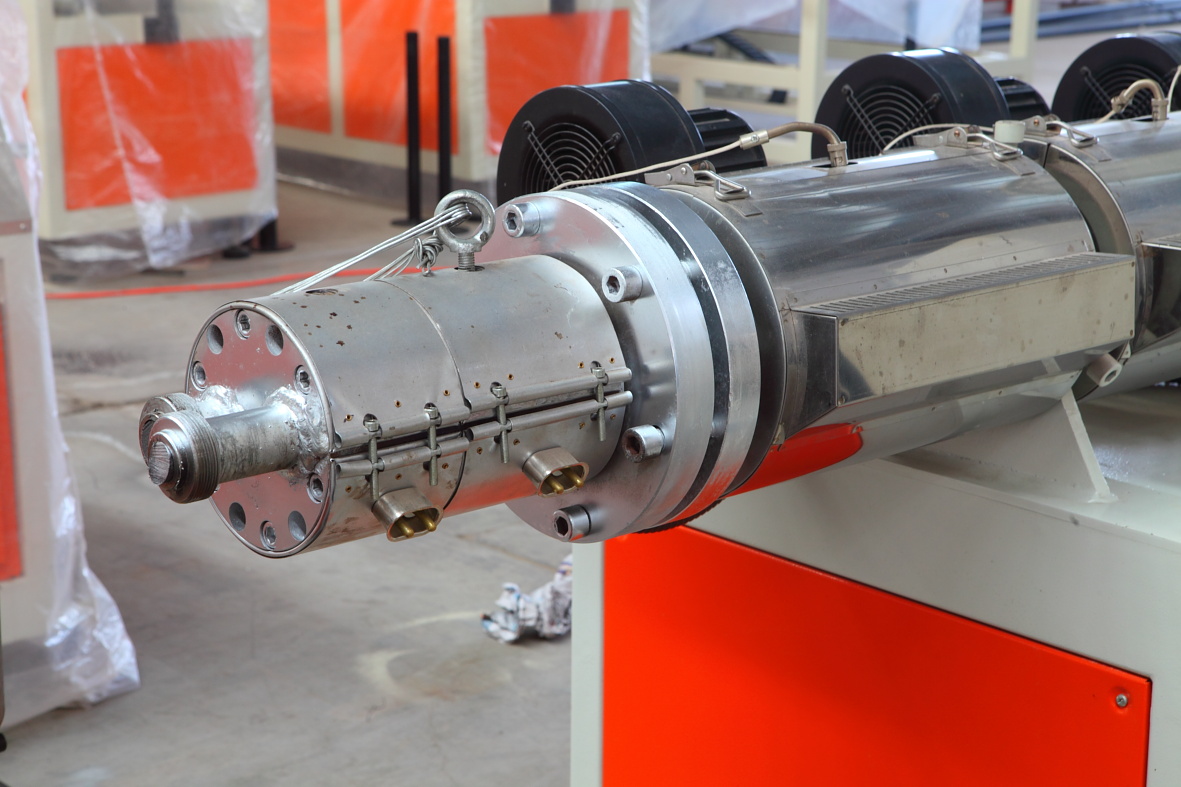

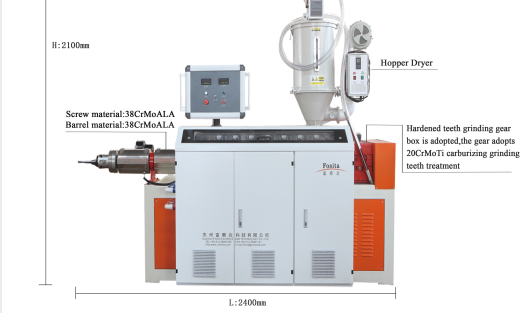

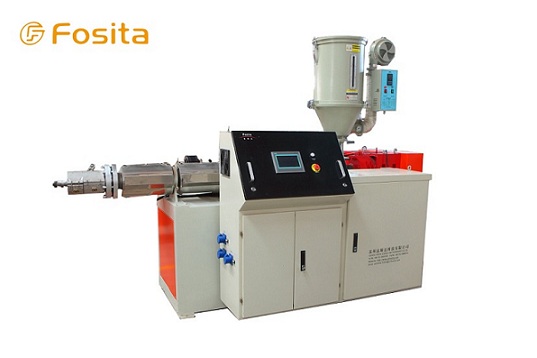

65/30 single screw extruder
Screw diameter: 65mm
L/D Ratio: 30:1
Screw&barrel material: 38CrMoAlA
Motor: 37kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:120-180kg/h

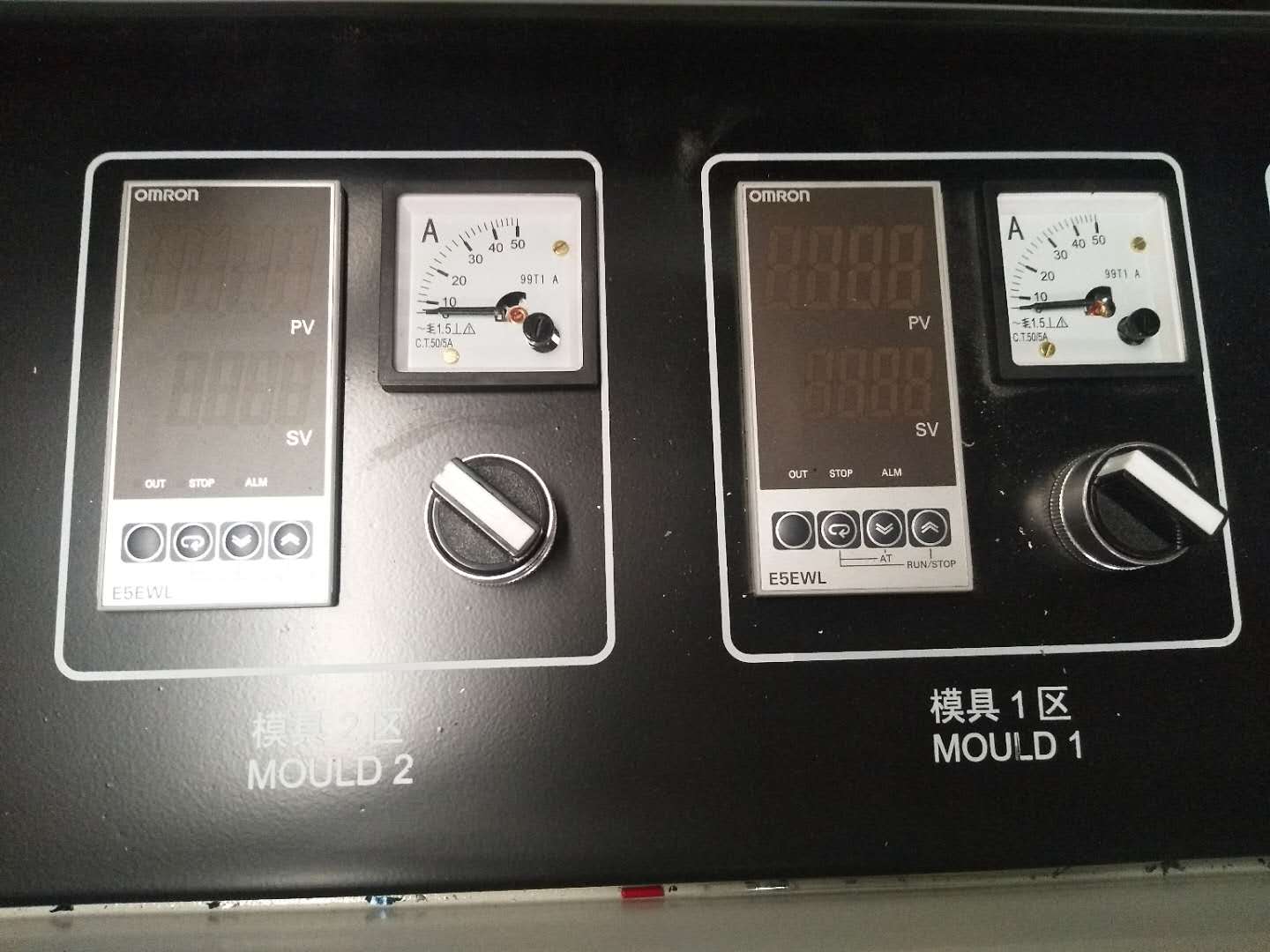

Temperature Control: Ormon
Contactor: Dexili

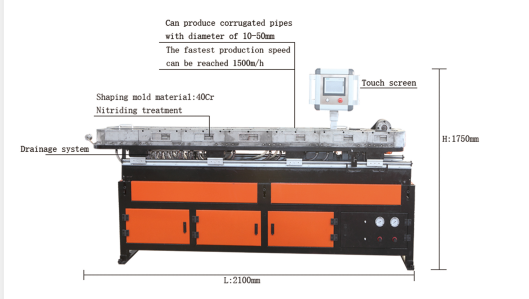

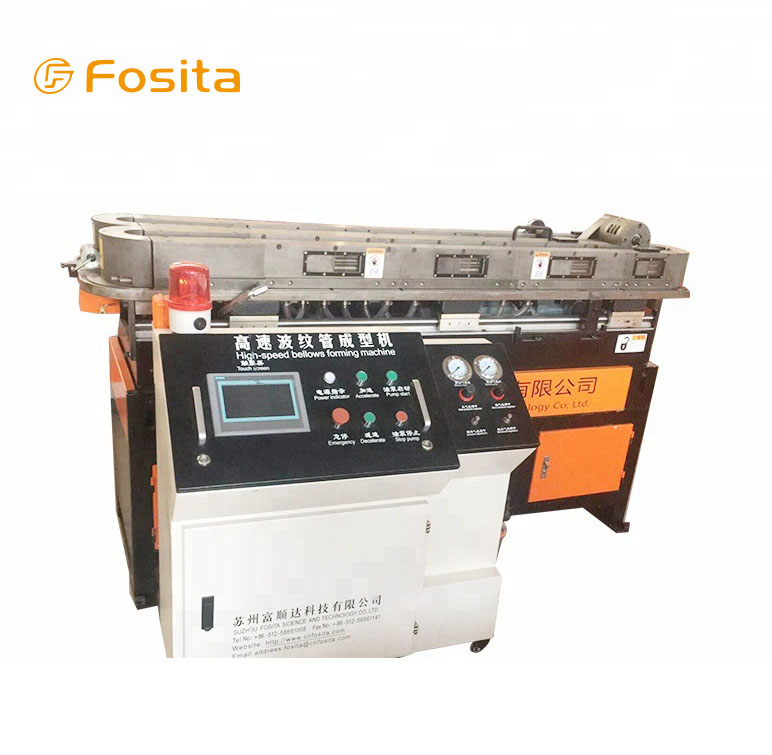

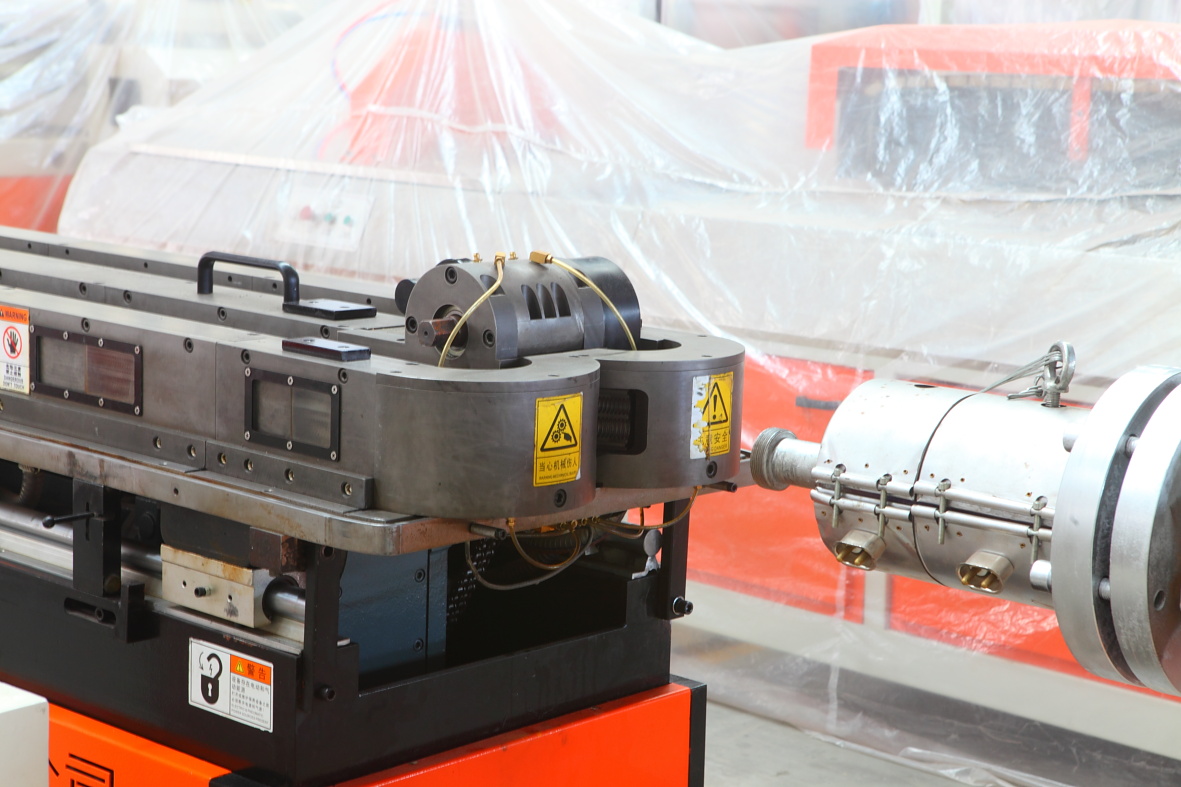

Corrugated pipe forming machine

Motor: 2.2kw
Production speed:8m/min
Quantity of shaping mould:60 pairs per set
Cooling method:Air cooling

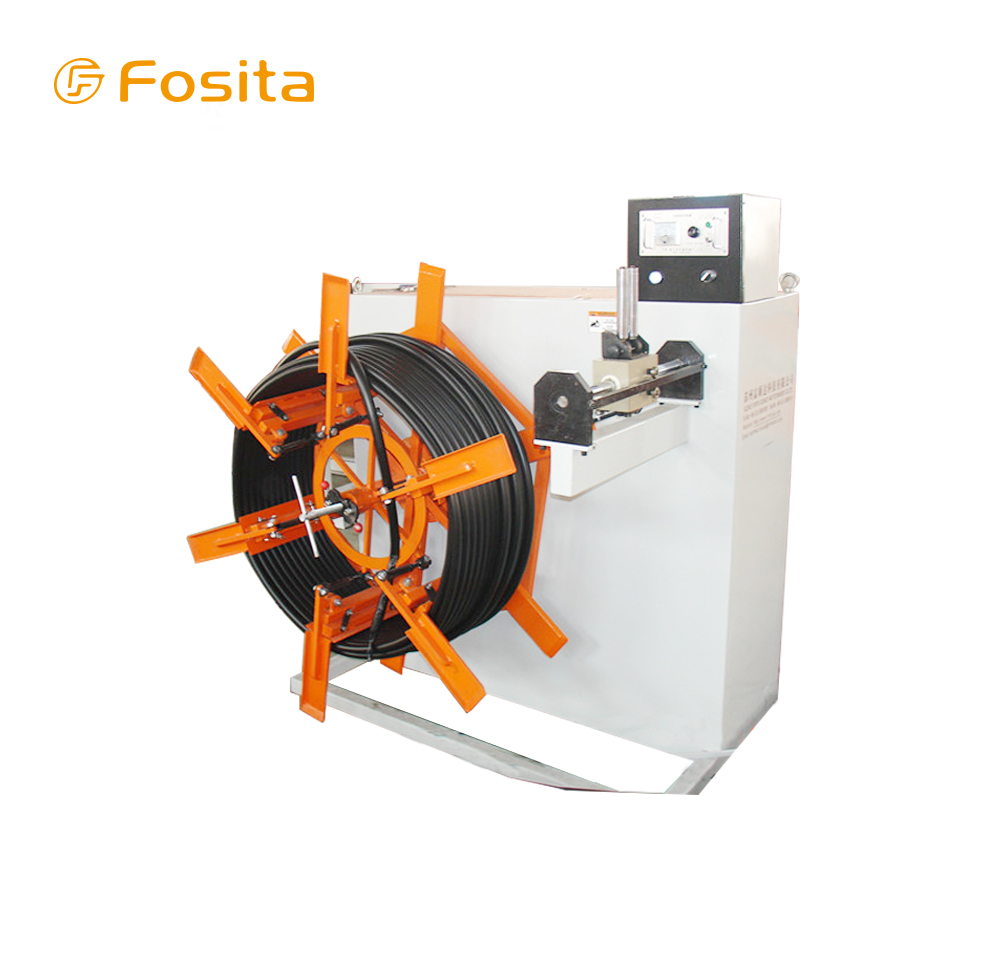

Winder

Inner diameter of coil(mm):can be made as your request
Outside diamter of coil(mm):can be made as your request
Working method: Pneumatic













Product Advantage

 Gear rack design with good performance of corrugator machine.

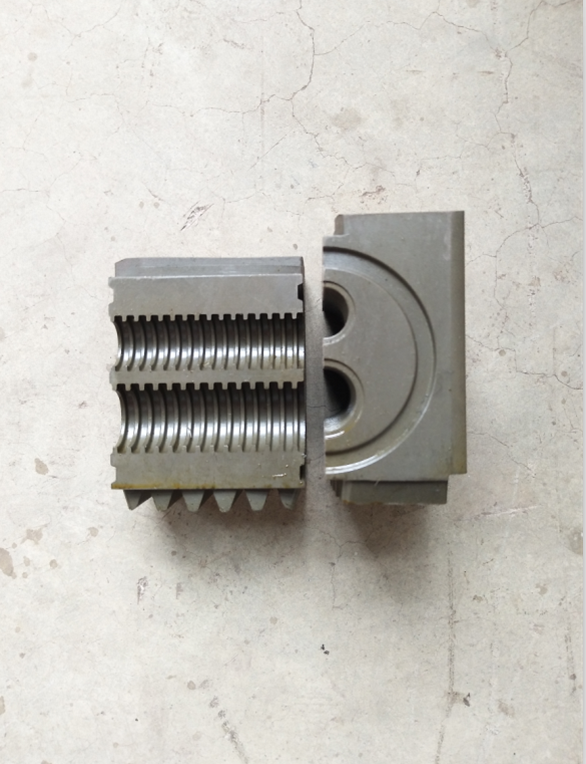

 Mold block with durable and wear-resistant, also suitable for medical use.

 Maximun speed can be 40m/min by Fosita design.

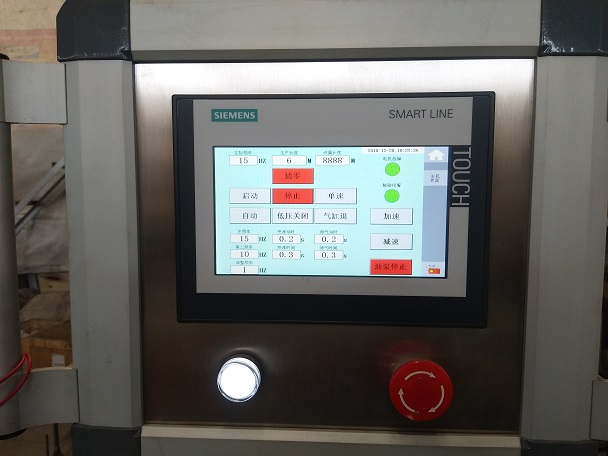

★ All line is equipped with Sciemens PLC.

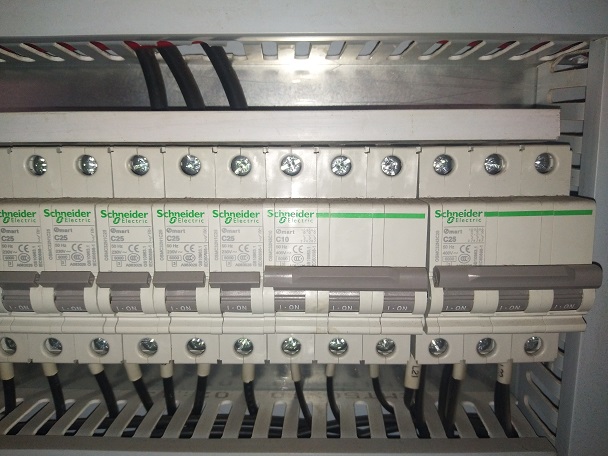

 Brand configuration: Omron, ABB, Sciemems, Schneider...




  Extruder&Shaping Machine :automatic mold release device,timing refueling system,high tube forming quality,sewage treatment system,perspective window...

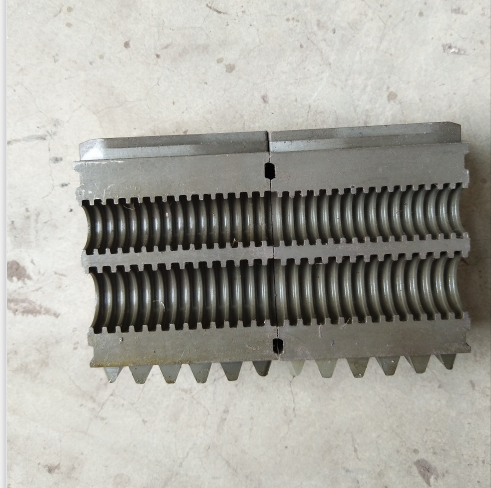

  Stainless Steel Moulds: 40Cr, chrome plated, easy to change.

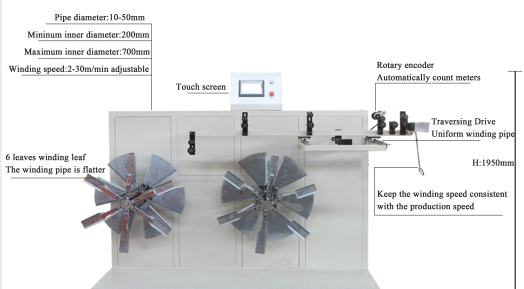

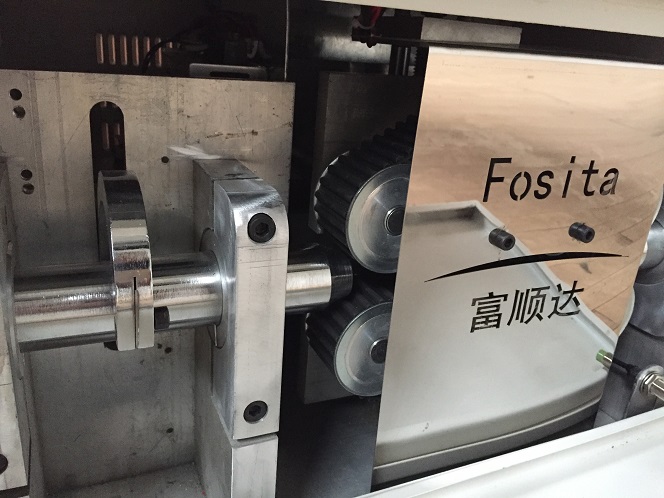

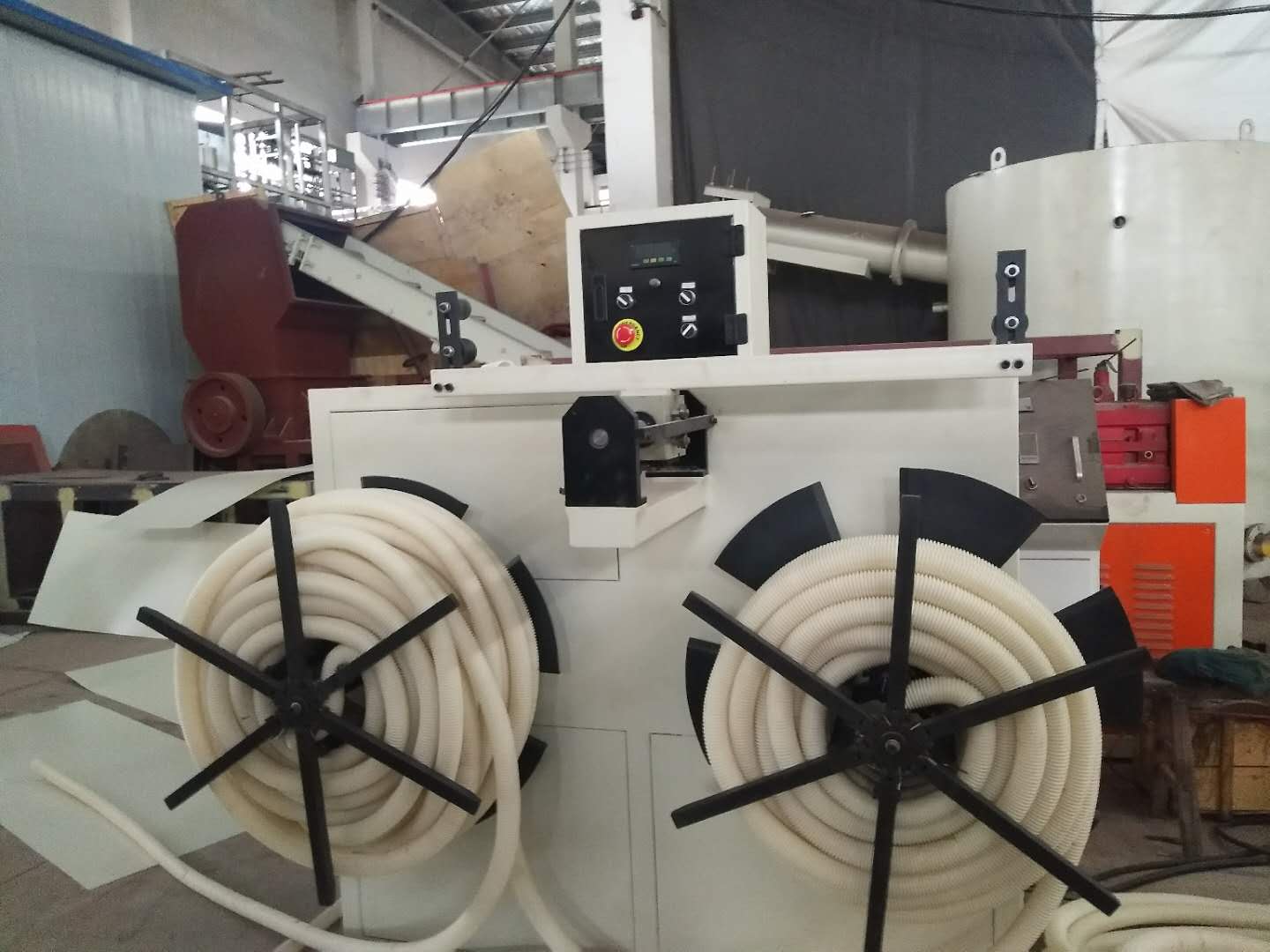

● Automatic Winder with meter and wire arranging device








Main Technical Parameters:

Pipe Diameter
12-32mm32-50mm
Main Motor
SJ45SJ65
Maxmim Capacity
50kg/h100kg/h
Producing Speed
1500m/h1500m/h
Line Length
10m10m

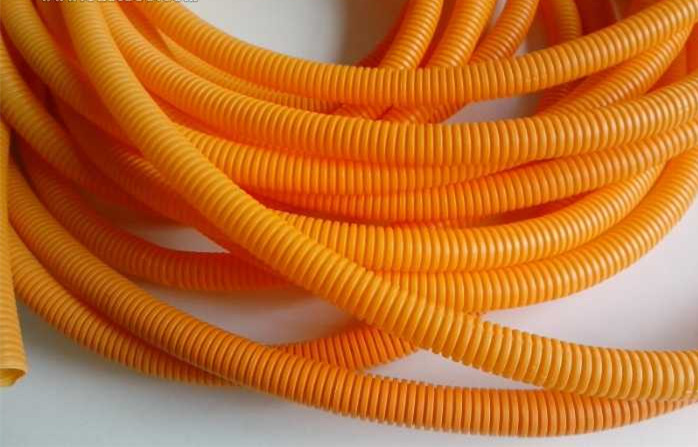

Application:

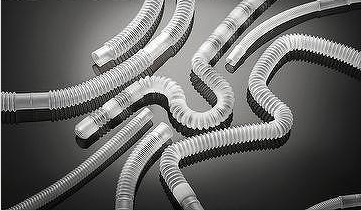

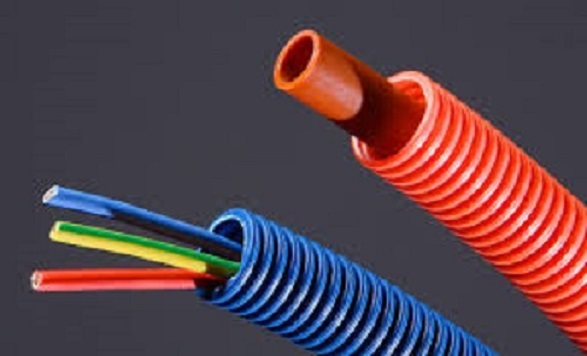

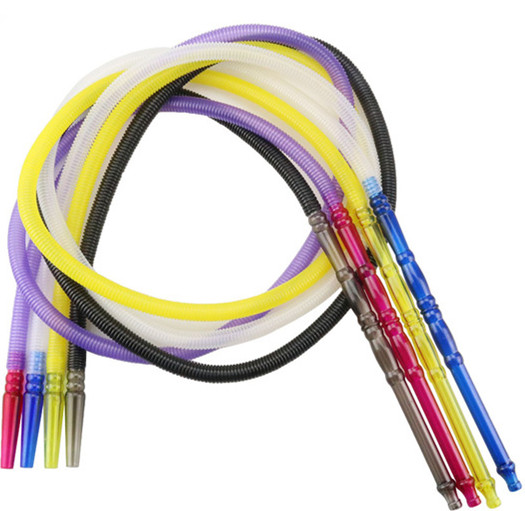

                     Cable Conduit Protecting                                               Medical Use Pipe                                                                                  Shisha Pipe
