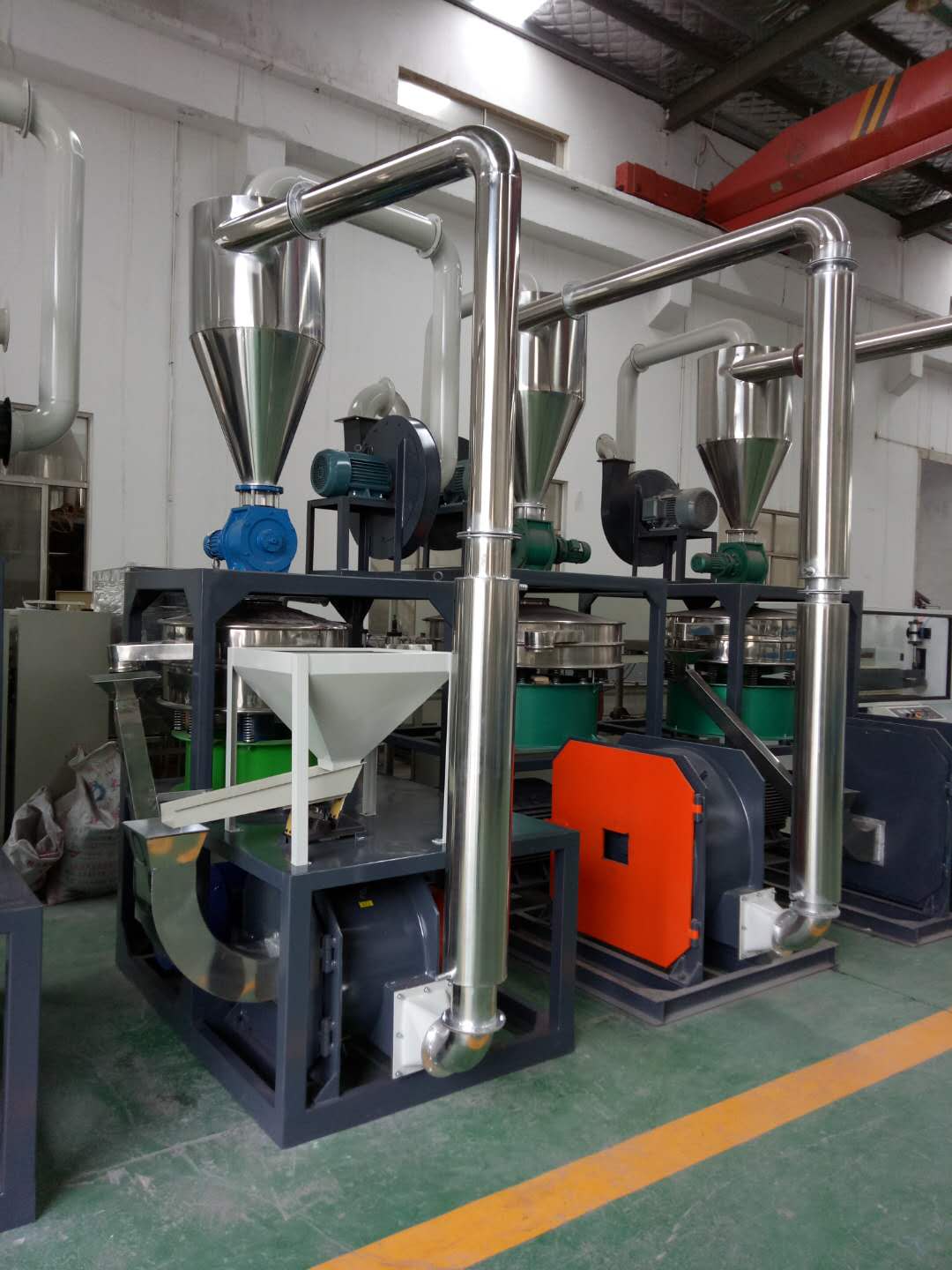

SMP Plastic Pulverizer Turbing MIlling Machine
SMP Plastic Pulverizer Turbing MIlling Machine
This unit is an ideal equipment for grinding thermosensitive PVC, PE and other plastics. The grinding powder can be added 20%-30% in the processing formula. The rational properties of the products remain unchanged.
380V 50Hz
30-55kw
10-100mesh
80-500kg/h
PVC
PE
PP
ISO/CE Certification
12 Months Warranty
Engineer service available overseas
Product Specification
Technical parameter
Model | SMF-380 | SMF-610 | SMF-800 |
Grinding disc diameter(mm) | 380 | 610 | 800 |
Grinding disc quantity(pcs) | 2 | 2 | 2 |
Speed of mainshaft(r/min) | 4500 | 4200 | 3700 |
power | main motor power:30kw blower motor:3kw flow valve:0.75kw | main motor power:45kw blower motor:5.5kw flow valve:0.75kw | main motor power:55kw blower motor:7.5kw flow valve:1.1kw |
vibration sieve motor | ZDS-800 | ZDS-1000 | ZDS-1200 |
Powder fineness | 10-100 | 10-100 | 10-100 |
coolig type | air cooling,water coolng | air cooling,water coolng | air cooling,water coolng |
output(60 meshes) | PVC:200KG PE:150KG PP:150KG | PVC:350KG PE:300KG PP:300KG | PVC:500KG PE:500KG PP:500KG |
Outsize(mm) | 2500*2000*3000 | 2800*2300*3000 | 3200*2800*3200 |
Product Design
Purpose:
This unit is an ideal equipment for grinding thermosensitive PVC, PE and other plastics. The grinding powder can be added 20%-30% in the processing formula. The rational properties of the products remain unchanged.
It is necessary for you to solve waste and waste accumulation, reduce costs and save expenses, and improve economic benefits in the process of processing plastic products. Less special equipment.
