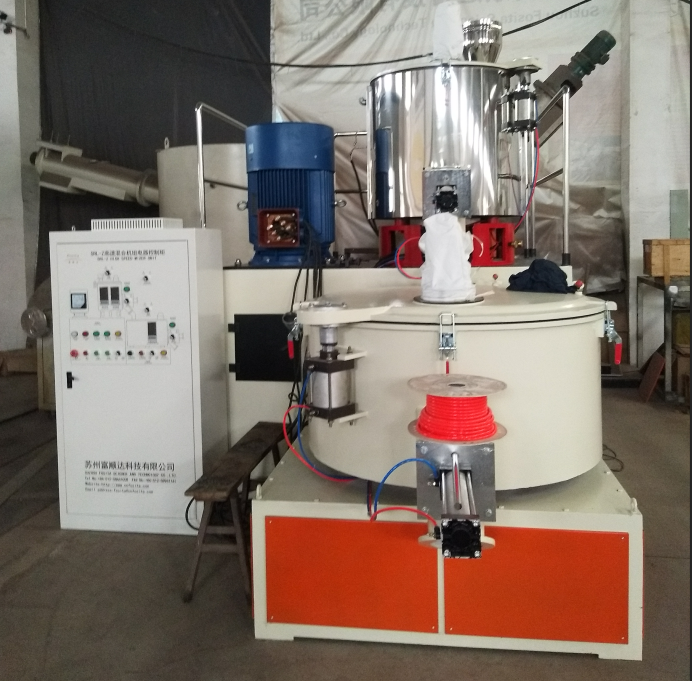

SRL-Z Plastic Raw Material Powder Mixer Machine
SRL-Z Plastic Raw Material Powder Mixer Machine
Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective capacity(L) | 65/130 | 150/320 | 200/360 | 330/640 | 600/1050 |
Rotation speed(rpm) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/50 | 370/740/50 |
Mixing Time(min) | 8-12 | 8-12 | 8-12 | 8-15 | 8-15 |
Motor power(KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Weight(KG) | 2200 | 3400 | 3600 | 6500 | 9800 |
Working Video: www.youtube.com
Purpose:
Srl-z series high-speed mixing unit is mainly suitable for mixing various resins such as polyethylene, polypropylene, polyvinyl chloride and other ingredients, mixing, coloring, drying, drying and ABS polycarbonate engineering plastics before processing, drying, devolatilization and other processes, can also be used for phenolic resin mixing.
Performance and Structure
1. It is an ideal equipment for the production of pipes and profiles. It is used for the preparation, mixing, drying, coloring and CaCo3 processes of various plastics.
2. Thermal mixing has the functions of self-friction superelectric heating and steam heating.
3. The lid of the pot is sealed in two ways. Cold mixing also uses arch-shaped pot cover, which is not easy to deform.
4. It has the characteristics of compact structure and beautiful appearance.
5. The blades have passed static and dynamic balancing tests.
