PVC Pipe Extrusion LIne
PVC Pipe Extrusion LIne

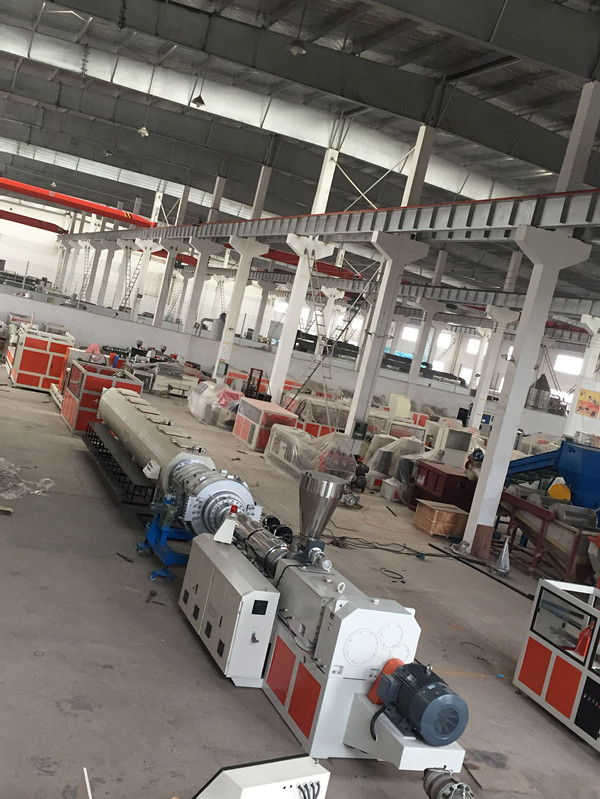

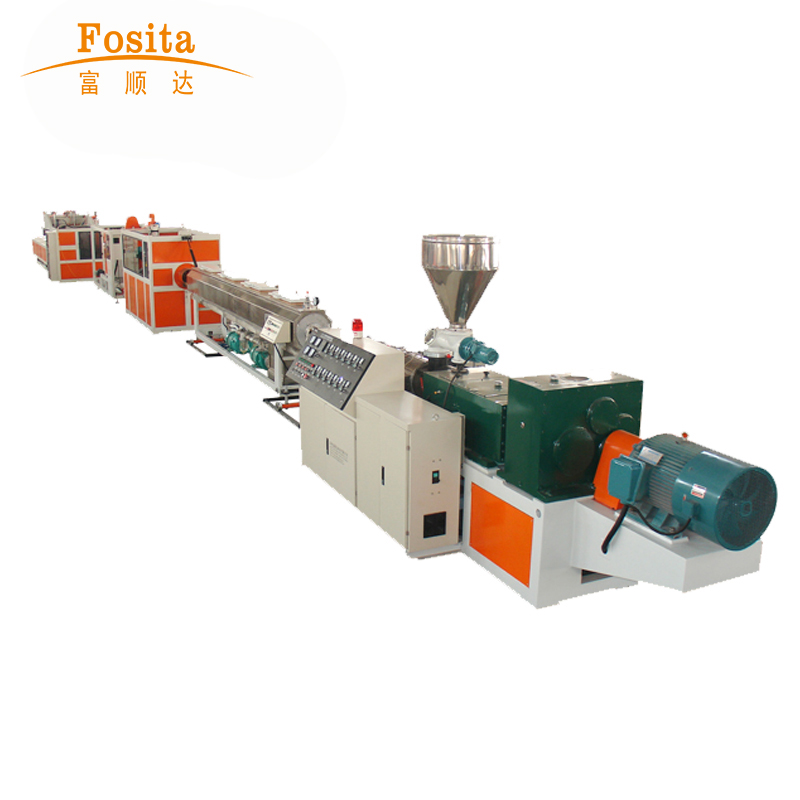

PVC pipe extrusion machine include: conical twin screw extruder, mould, vacuum calibration tank, haul-off, cutter, stacker.
16-800mm
380V 50HZ
55kw
PVC
12 months warranty
Engineer service overseas
ISO/CE
Product Description

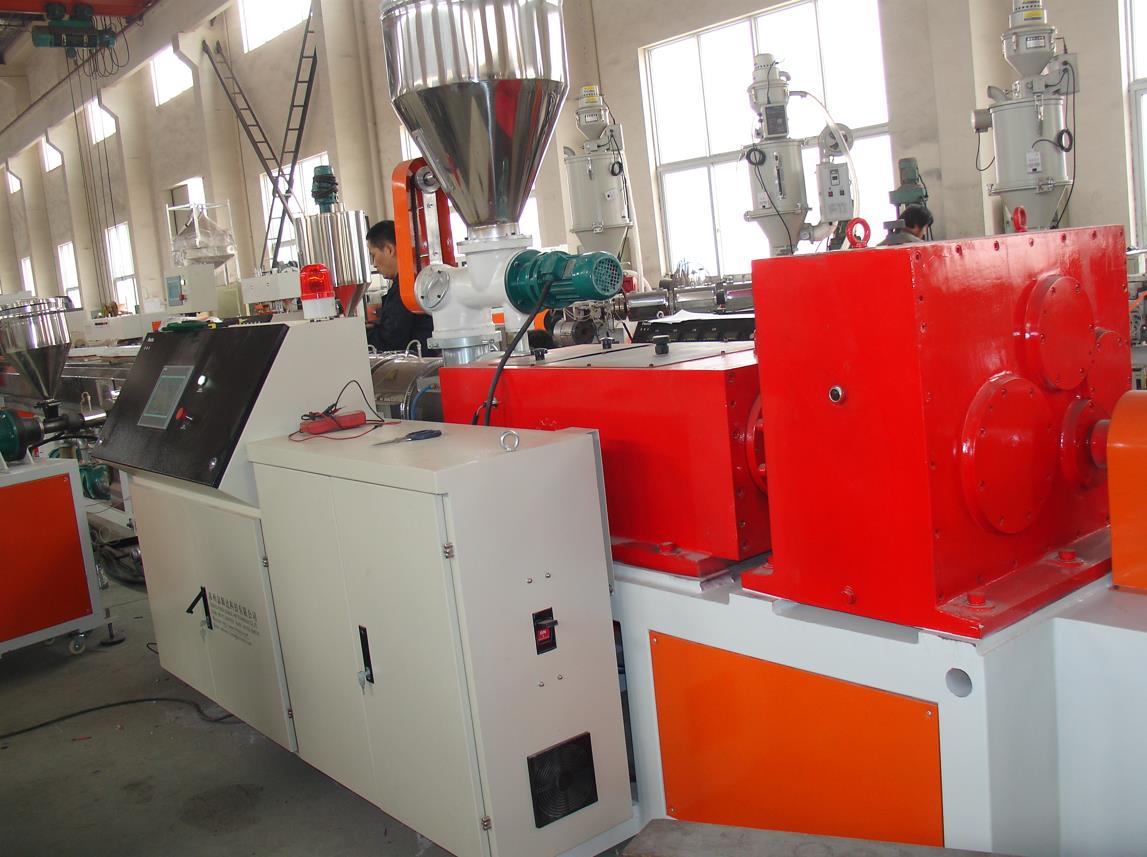

Adopt the china top ten sale screw extruder machine, and mainly used in extruding PVC, PE, PP, PET,ABS and so on
PVC pipe process
Formulation→High-speed mixing→Conical twin-screw extrusion→Vacuum sizing, spray cooling→traction→fixed length cutting
Production Details
★ Screw material:
High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.
★ Heating unit:
It is mainly composed of cast aluminum heater
and stainless steel casing, and has excellent thermal conductivity of
metal alloy to ensure uniform temperature of hot surface.

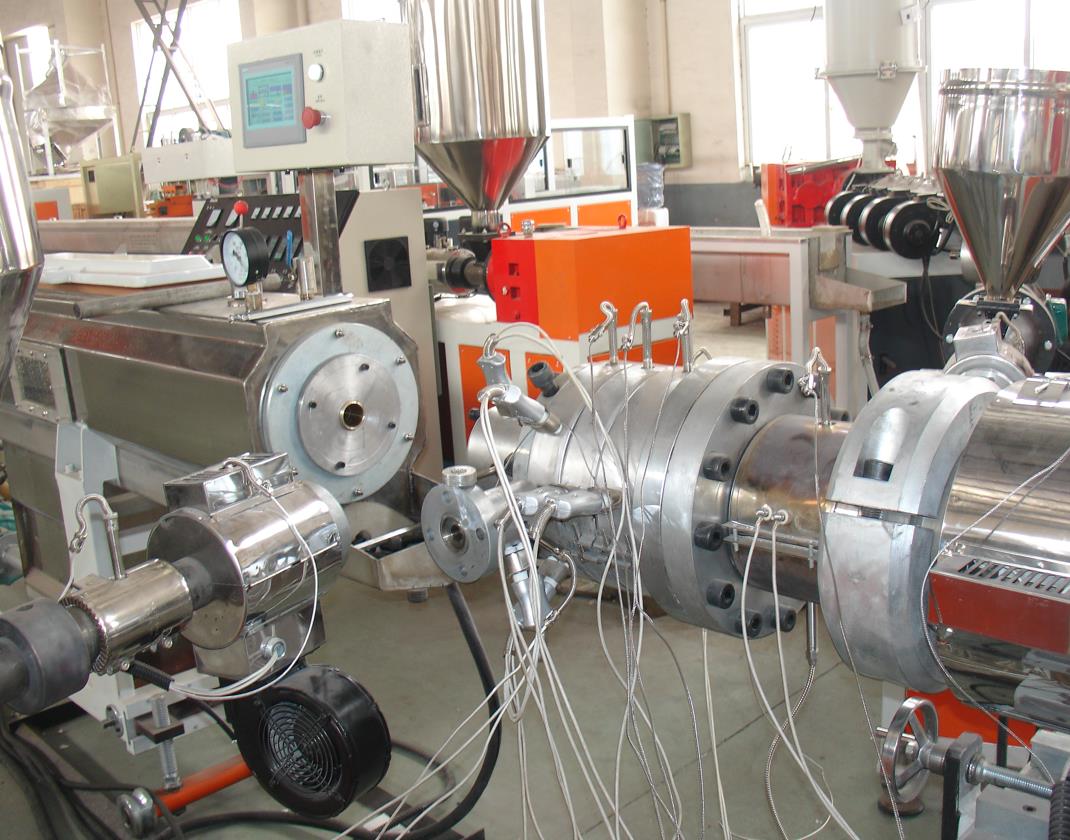

★ Extrusion Mould:
It is the construction part of pipe forming.
It is the construction part of pipe forming.
★ Vacuum Forming Machine
For pipe shaping and cooling,equipped
with vacuum system and water circulation system for shaping and
cooling，stainless steel box,circulating water spray cooling.
★ Haul off machine
Used for continuous and automatic extraction of cooled and hardened pipes from the nose,frequency conversion speed regulation.
★ Cutting machine
The
cutting machine takes the fixed length switch signal as the
instruction,completes the whole cutting process and keeps
synchronization with the pipe operation during the cutting process.
Main Technical Parameter
| Model | Diameter | Main Extruder | Line Length(m) |
| FST-63 | 16-63mm | SJSZ-51/105 | 24 |
| FST-110 | 20-110mm | SJSZ-55/110 | 25 |
| FST-250 | 50-250mm | SJSZ-65/132 | 25 |
| FST-315 | 110-315mm | SJSZ-80/156 | 25 |
| FST-630 | 315-650mm | SJSZ-92/188 | 32 |
| FST-800 | 500-800mm | SJSZ-105/218 | 33 |

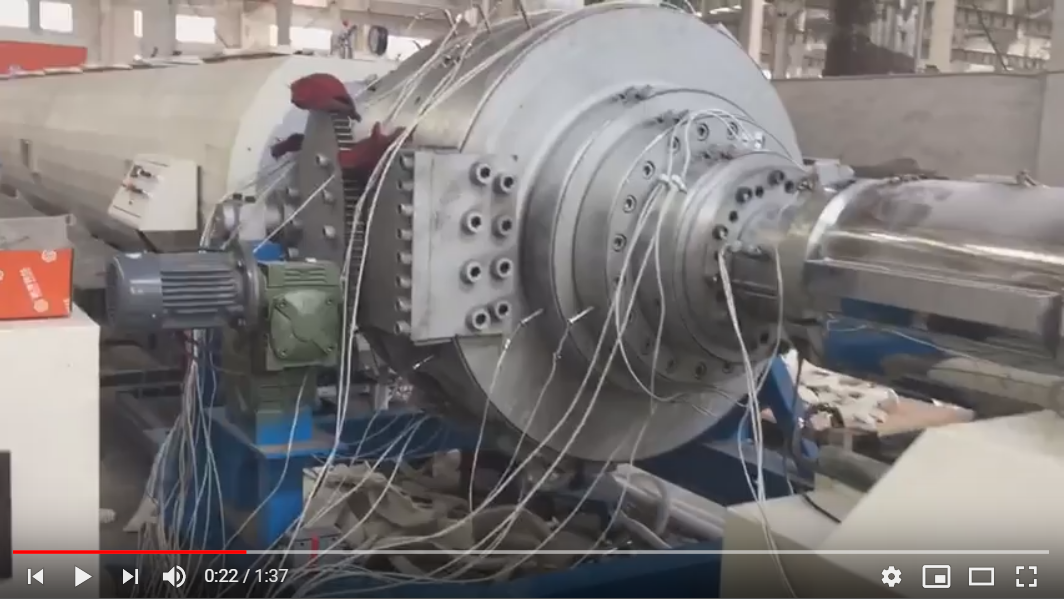

Working Video
Please Click: www.youtube.com
Wide Application

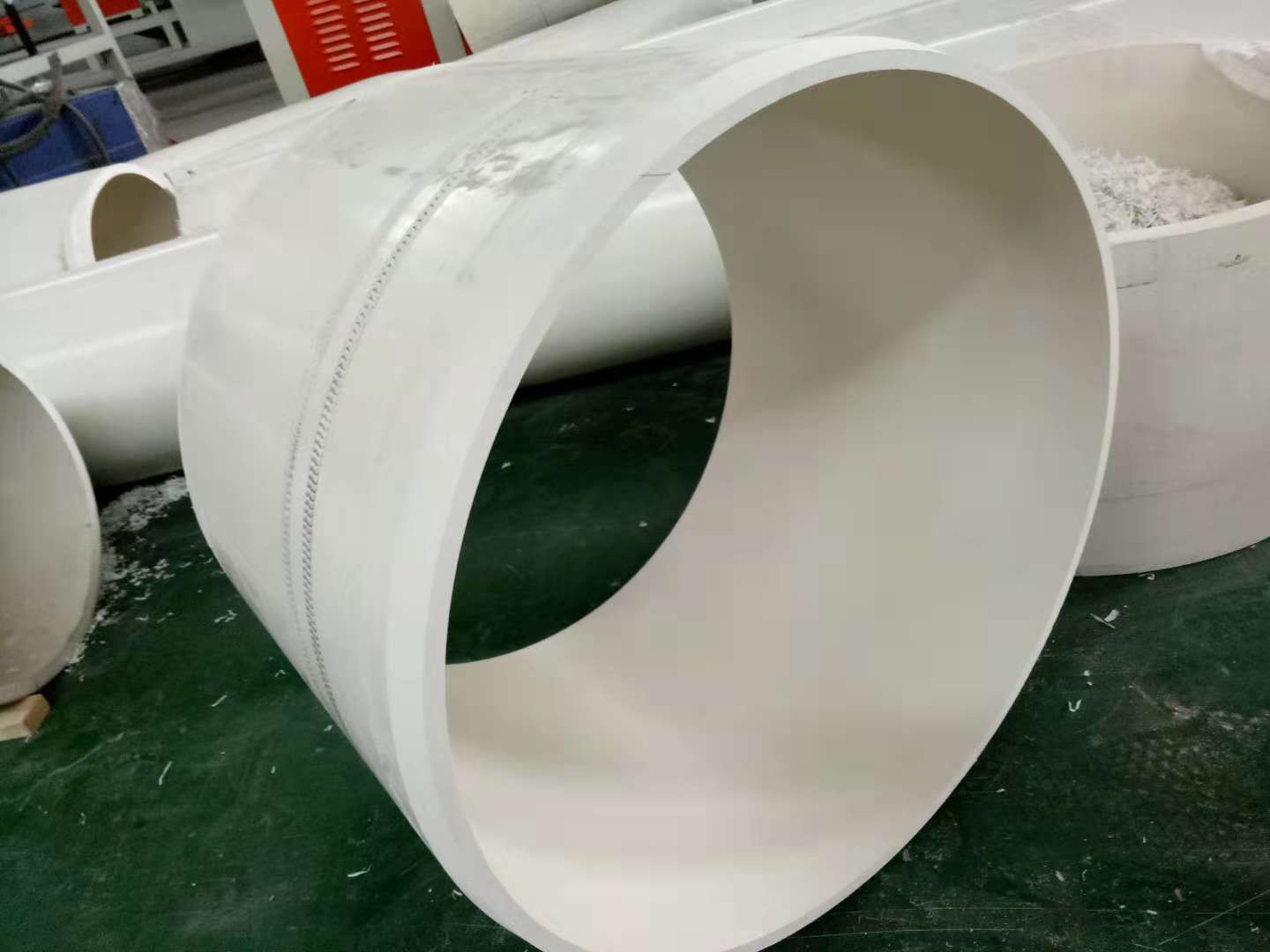

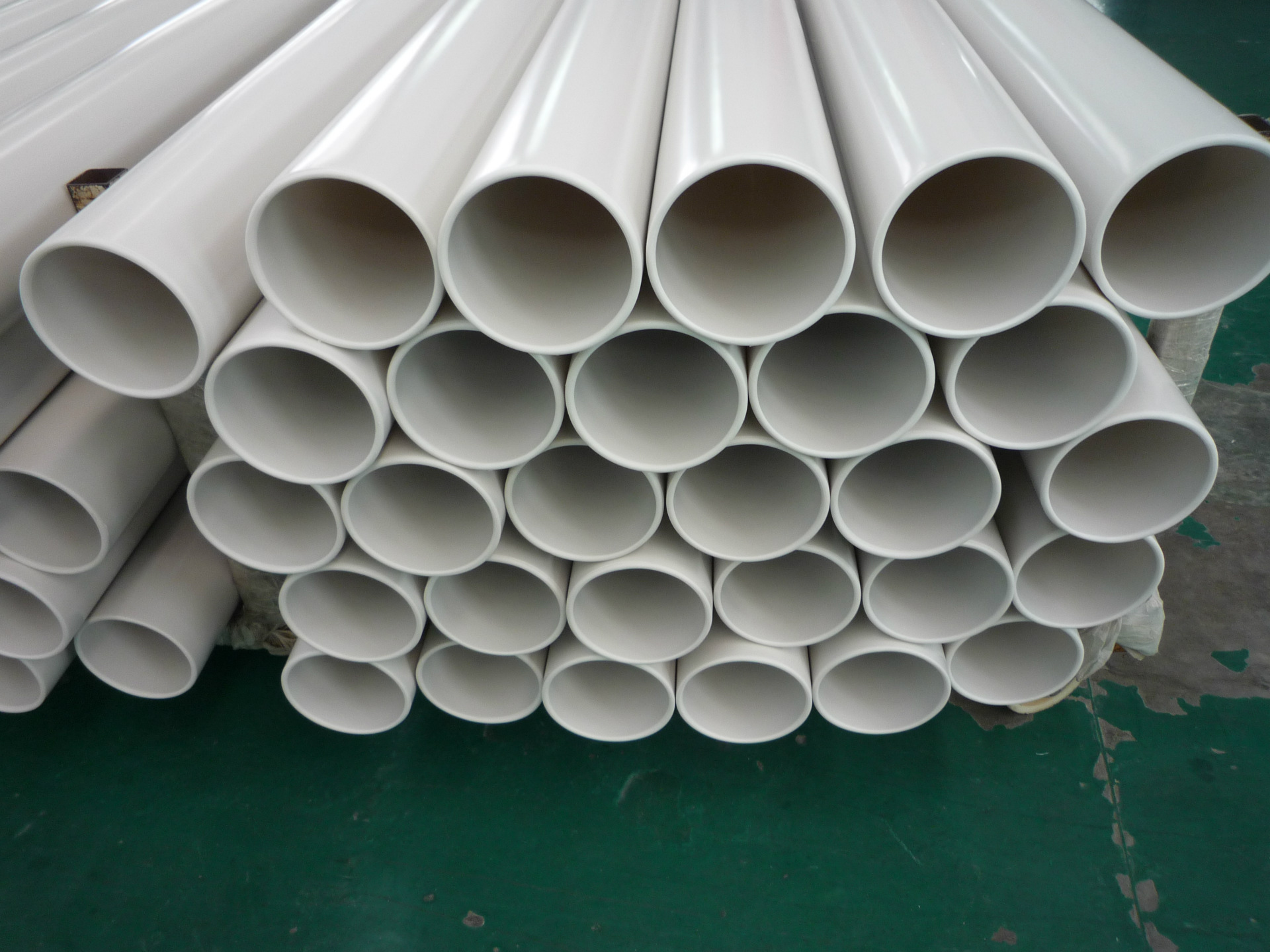

PVC pipe is mainly used for the production of agricultural drainage, building drainage, electricity, communication cables, etc. and various PVC pipes with various pipe diameters and wall thicknesses.
Agriculture Drainage Pipe Building Pipe Cable Wire Pipe
