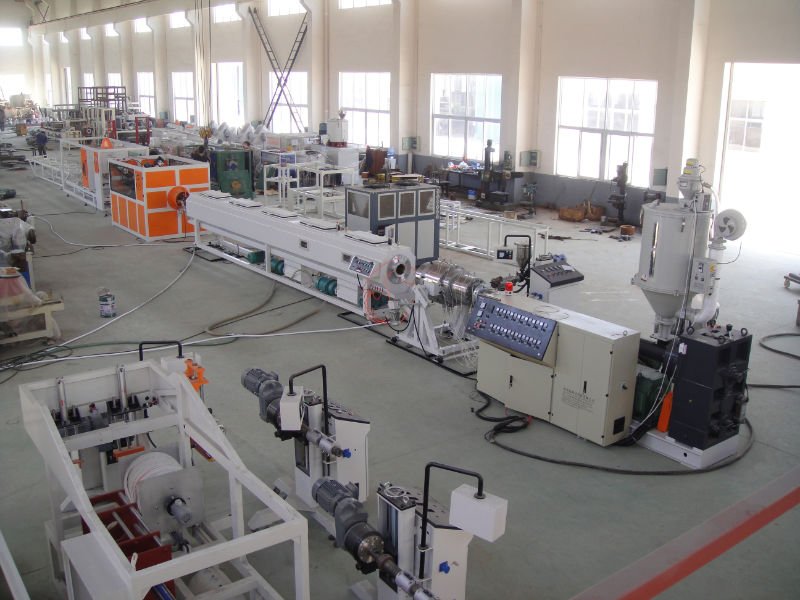

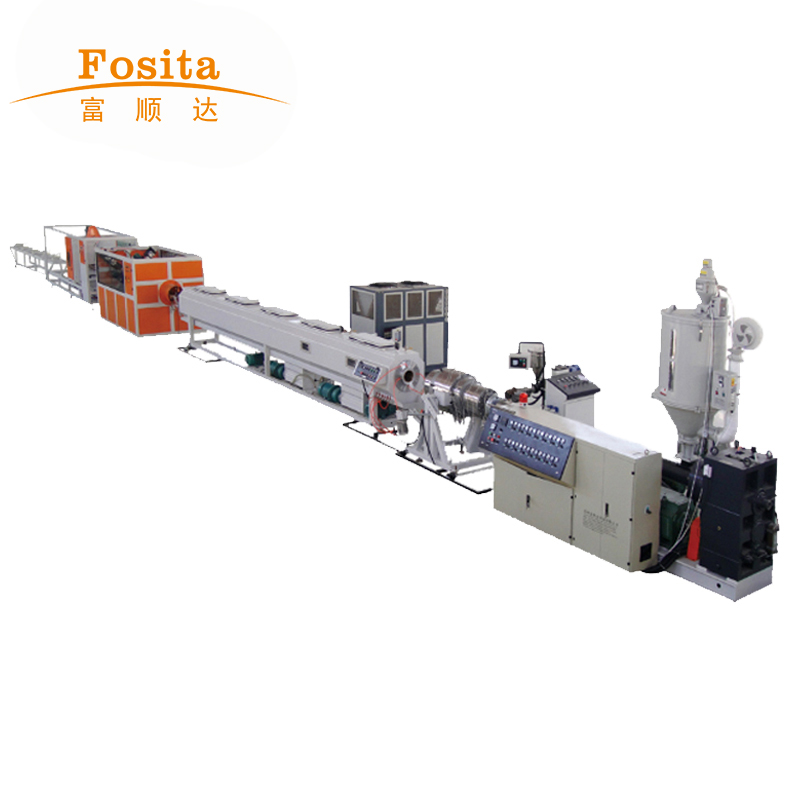

HDPE PE Pipe Extrusion Line
HDPE PE Pipe Extrusion Line
Product Description
● The screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves.
● All of these offer good plastification and mixing effect.
●Special design of basket die head for HDPE(PP,ABS)large diameter pipe,
with thick wall offer lower melting temperature,good mixing, lower pressure of cavity and stable production.
Vacuum Calibration Tank Spray Cooling Tank
● Special design for sizing and cooling system by using film and water ring to cool HDPE(PP.ABS)material,
which can fit for the requirement of sizing stability and roundness of HDPE(PP,ABS)

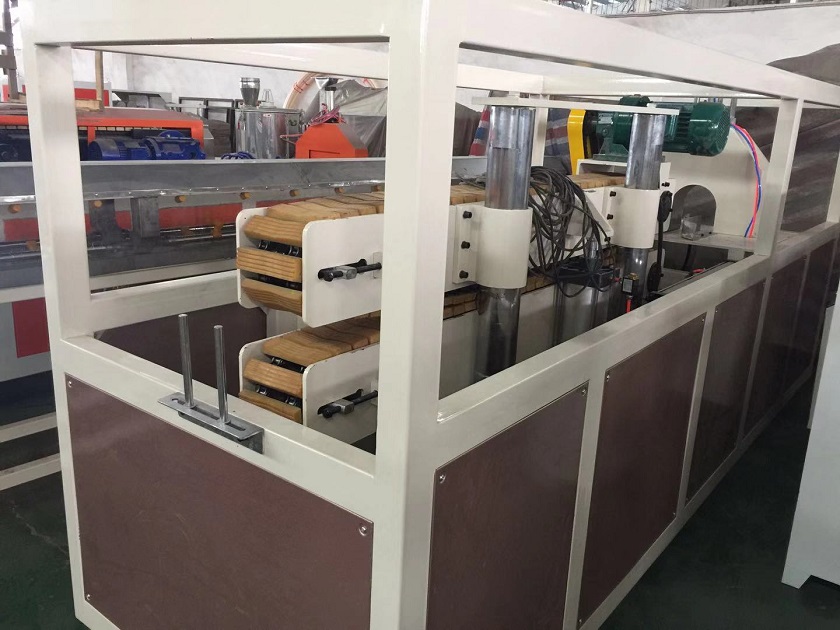

Haul Off Machine Cutting Machine
● The whole production line adopts PLC performance control system,which makes the operation convenient.
● This line can be equipped with co-extruder for extruding color strip.

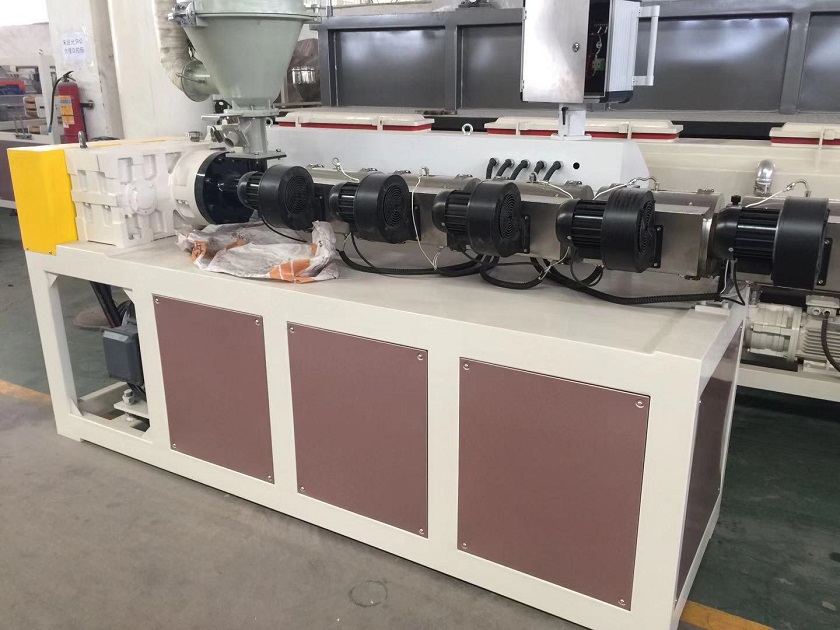

Co-extruder
Product Advantage
★ Provide solution for multi-layer pipe
★ Unique design of multi-layer die head to offer economic material cost plan
★ Good auxiliary machine to equip with the production speed
★ Improve screw with excellent plasticization performance and high capacity
★ High efficiency die head quality with good effect of vaccum tank
★ Stable haul off speed with clean cut
Working Video
Working Video Please Click:
www.youtube.com

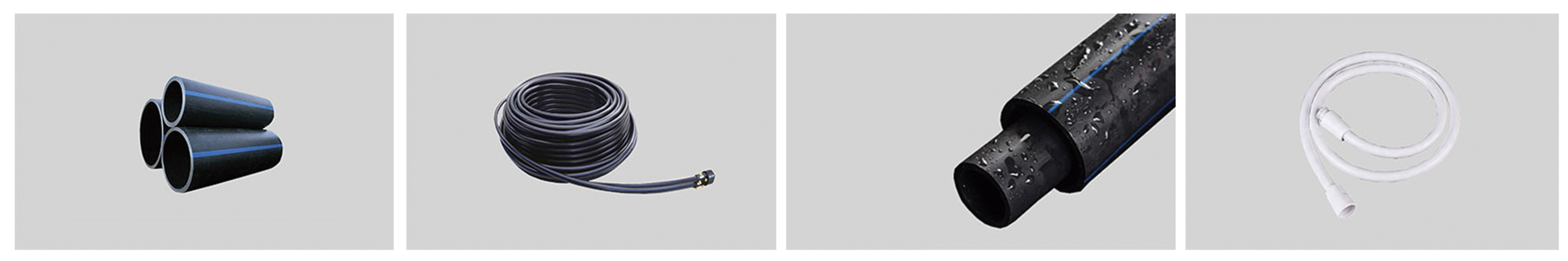

Products Sample
Technical Parameters
| Diameter（mm） | 20-63 | 50-110 | 75-250 | 90-315 | 160-450 | 315-630 | 400-800 | 710-1200 | 1000-1600 |
| Main Extruder | 65/33 | 65/33 | 75/33 | 75/33 | 90/33 | 120/33 | 150/33 | 120/33 90/33 | 120/33 120/30 |
| Main Motor Power（kw） | 37 | 55 | 110 | 132 | 160 | 280 | 355 | 280 160 | 280 280 |
| Max. Capacity（kg/h） | 120 | 180 | 330 | 380 | 450 | 750 | 900 | 1200 | 1500 |
