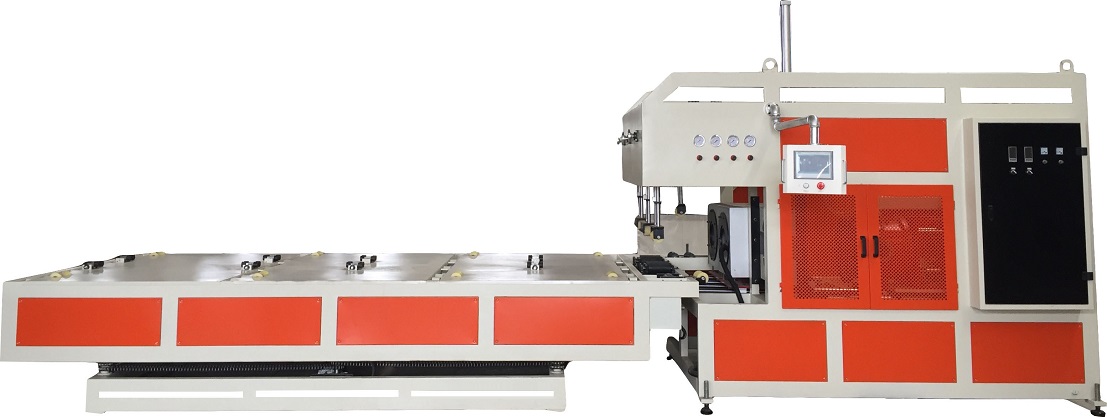

Hard Plastic Pipe Belling Machine-Universal
Hard Plastic Pipe Belling Machine-Universal
SGK series pipe belling machine include automatic and semi-automatic pipe belling machine.
380V 50HZ
36KW
20-250mm
12 months warranty
ISO/CE Certificate
Engineer service available overseas
Specification
Features of pvc pipe socket machine:
1.SGK
series Pipe Belling machine with hauling device and program interface
concerned is used with extruding machine. It is also used solitarily.
2.While expanding pipes,the machine adopts translation.The action is steady and correct.It does not damage pipes.
3.The
machine adopts electric heating type.Each oven is equipped with heating
core.The shaping method adopts expandingend shaping. The size of pipe
mouth is correct. On its panel, there is a transfer switch for belling
solvent type socket (Straight port) and seal loop type pipe socket(R
type).The choice of expanding pipe types is very convenient.
4.The technological adaptability is strong.All the key electric control elements are imported.
Technical Parameters
Model | Diameter(mm) | Wall thickness(mm) | Pipe Length(mm) | Total power(kw) | Output(pcs/h) |
FST-150 | 50-160 | 2.9-15 | 4-5 | 6.77 | 2-40 |
FST-250 | 63-250 | 2.9-15 | 4-6 | 8.87 | 2-40 |
FST-315 | 160-315 | 2.9-15 | 4-6 | 12.55 | 2-35 |
FST-500 | 250-500 | 2.9-22 | 4-6 | 15.15 | 2-30 |
FST-630 | 400-630 | 2.9-22 | 4-6 | 16.35 | 2-30 |

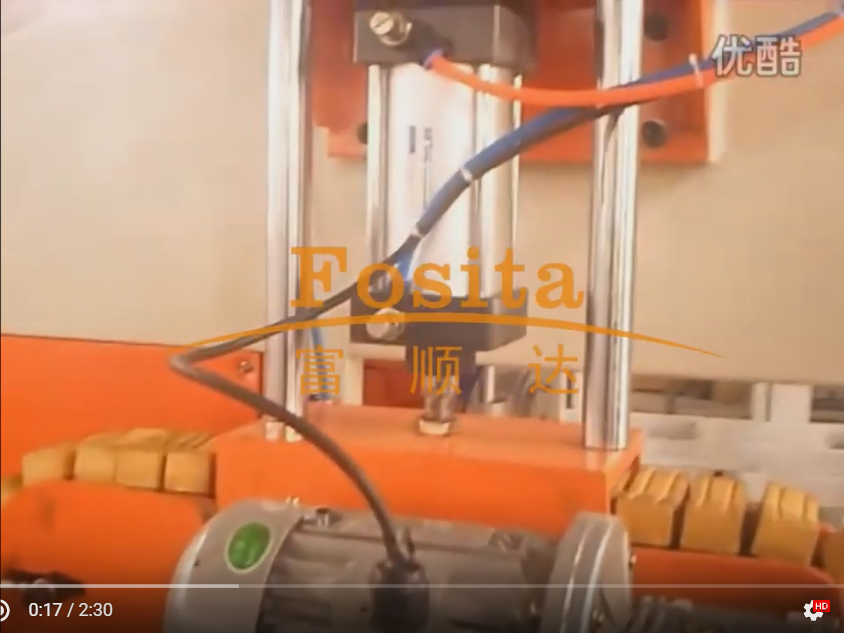

Belling Procedure

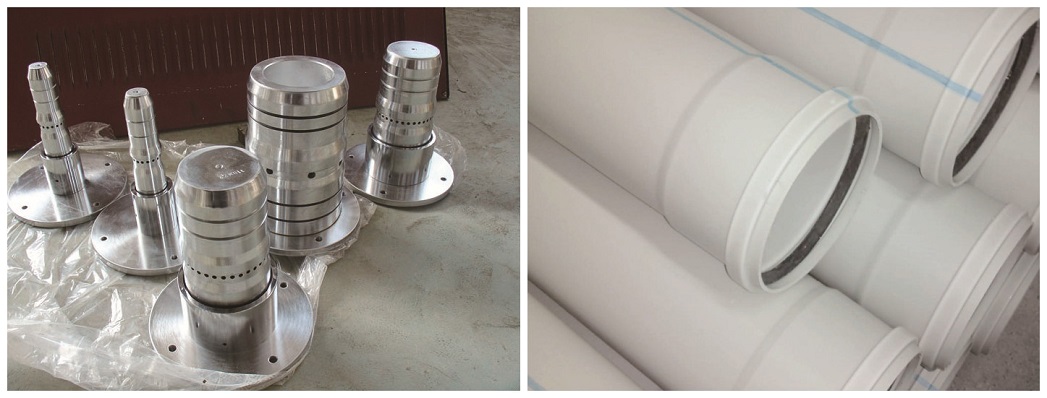

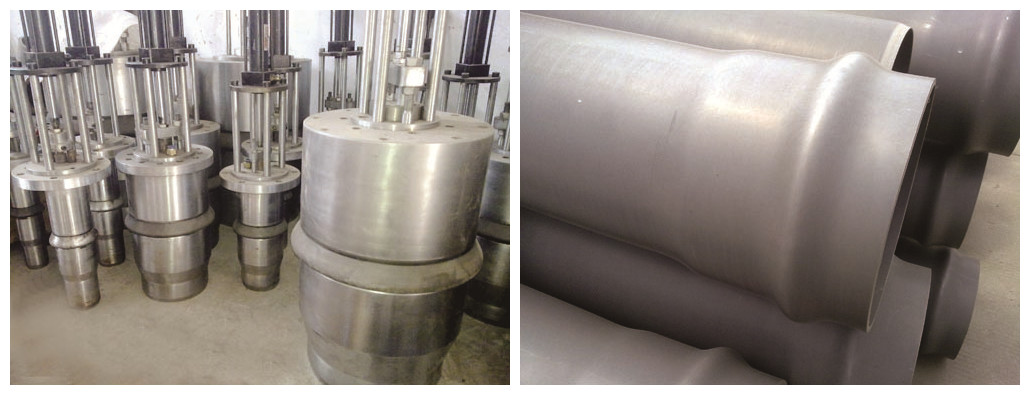

Belling Moulds and Pipe Products
