PP PE LDPE Film Washing Recycling Line

Products > Plastic Recycling and Washing Line > PP PE LDPE Film Washing Recycling Line

PP PE LDPE Film Washing Recycling Line

Fosita PP PE film washing and recycling machine could deal with waste plastic such as plastic bags, agriculture film,plastic package products and so on.

380V 50HZ 80-250kw 300-1000kg/h
PP PE film woven bags plastic bags products
12 months warranty ISO/CE Certification Engineer service available overseas
Product Description



PP PE film washing and recycling machine


Fosita PP PE film washing and recycling machine could deal with waste plastic such as plastic bags, agriculture film,plastic package products and so on.

The design of whole line is concise and popular all over the world.Besides, our products are surely of standard and high quality with CE certificaiton and ISO 9001.

Processes:

1. With the floating washer,the pe pp film will float on the water,while the dirt will get into the water,the material can be cleaned well,and get into next step.

2. With 1200rpm high speed rotating,the high speed friction washer is able to clean the oil on the flakes,and steam washer will heat the water,to make the material cleaned perfectly.

3.Our dewatering machine is designed by Germany,more effecient than others,and with the heater and heating pipe,the moisture of final products will be less than 2 percent.



Characteristic:

1.high elasticizing capacity

2.low energy consumption

3.high cost performance and long life

Main functions:

1.This plastic washing machine is used to treat film plastic material,just like pe pp film/woven bags and so on.

2.It can crush,wash,and dry the material,finally you will get clean,dry flakes,which can be used to make granules directly or some other use.

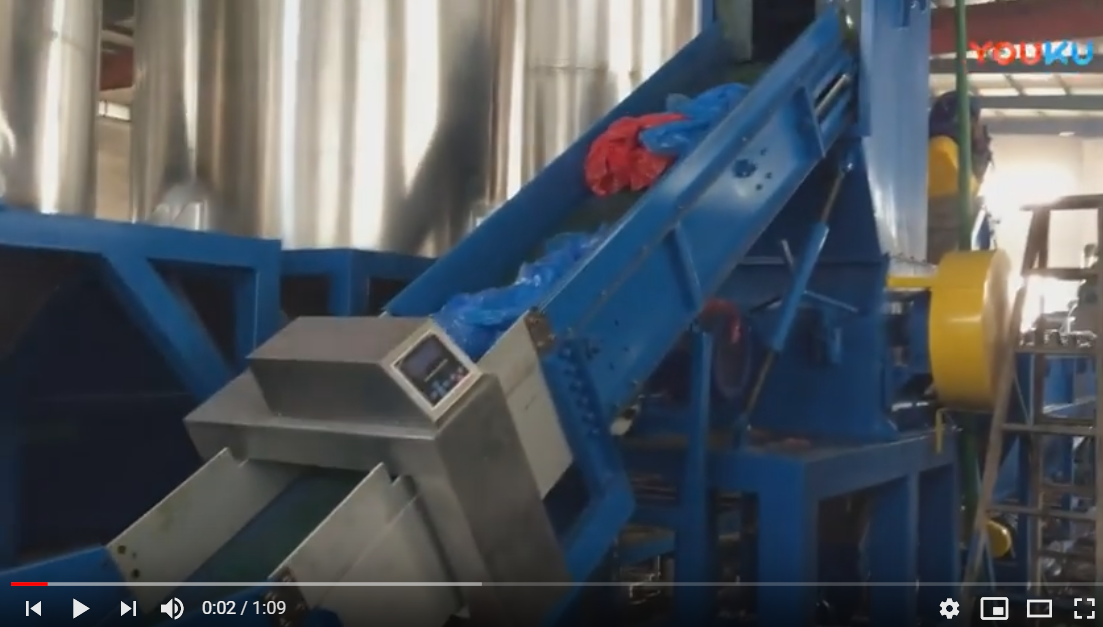

Working Video







         Please Click:www.youtube.com

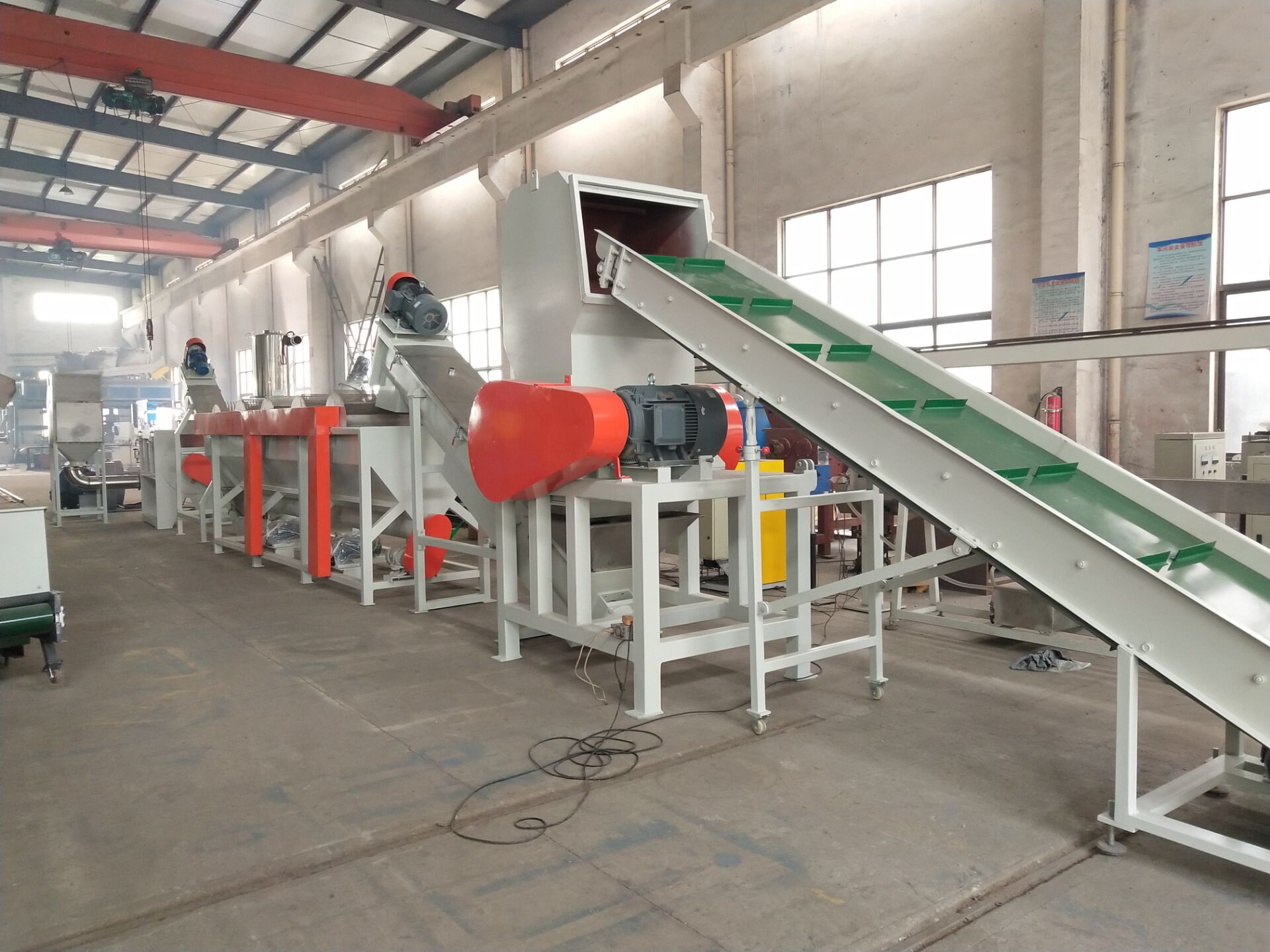

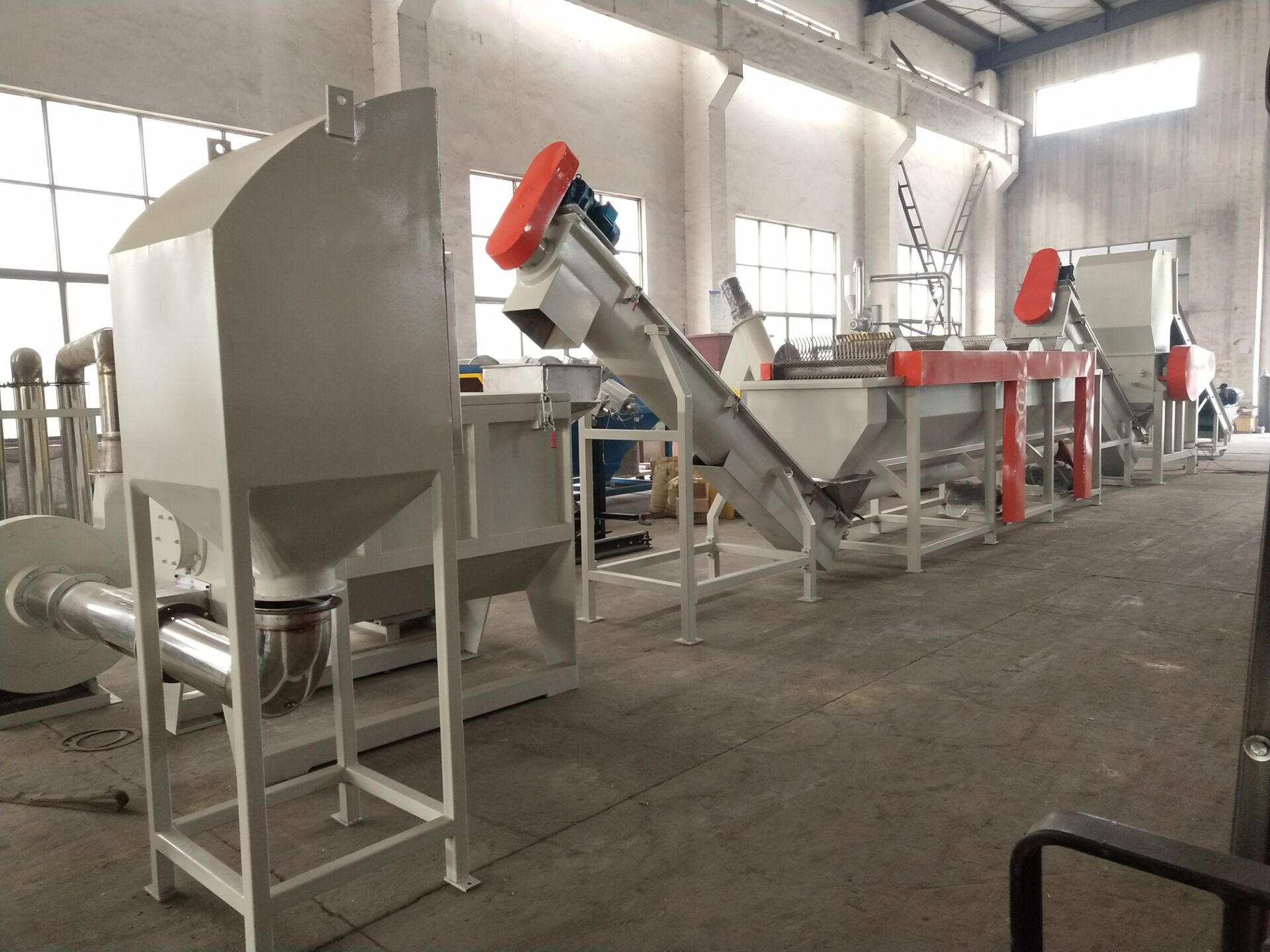

 Machine Details






Standard Configuration:

No.
Machine Name
Unit
1
Belt conveyor
1 set
2
Crusher
1 set
3
High-speed friction&washing machine
1 set
4
Film Rinsing Machine
1 set
5
Screw Feeder
1 set
6
Horizontal Spin-drier
1 set
7
Air Drying System
1 set
8


Cyclone storage


1 set




 Technical Parameter
ModelCapacity(kg/h)Power(kw)Line Length(m)
FST-300200-3006520
FST-500500-60011025
FST-1000800-100018530
